  • Figure 9.1

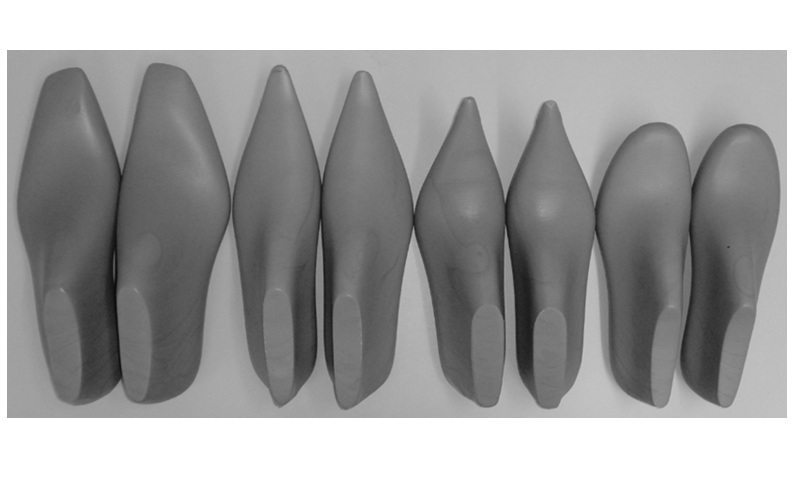

    Shoe-lasts

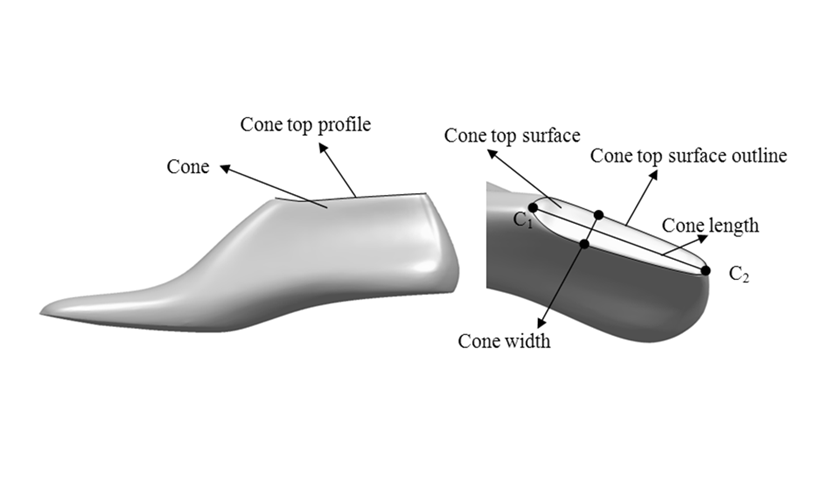

  • Figure 9.2
    Cone of the shoe-last

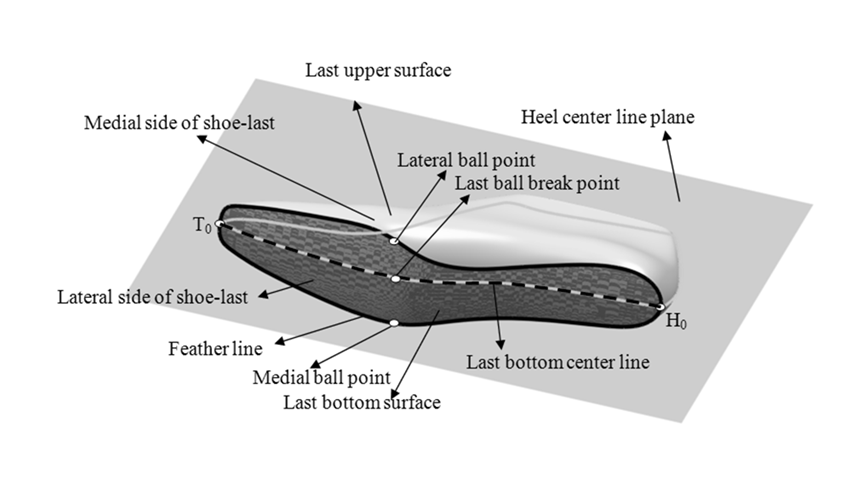

  • Figure 9.3
    Shoe-last center line and related nomenclatures

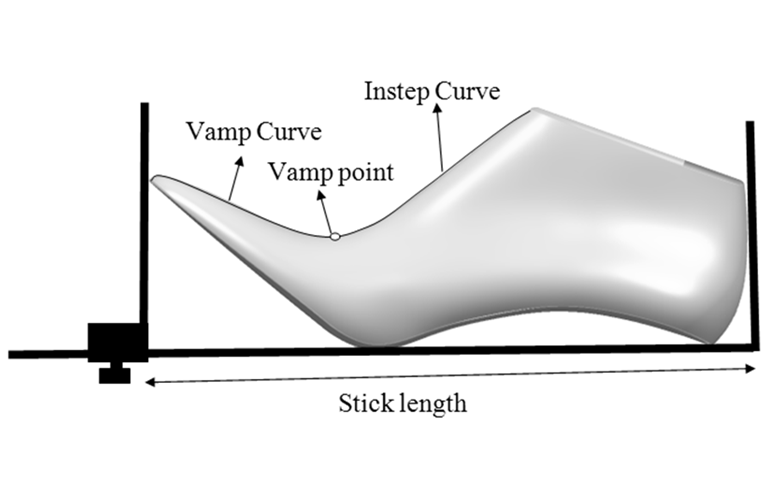

  • Figure 9.4
    Stick length
  • Figure 9.5

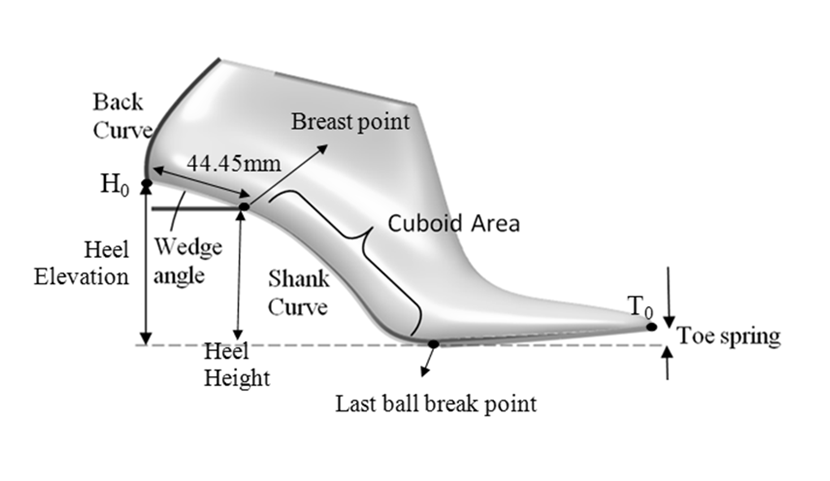

    Shoe-last side view

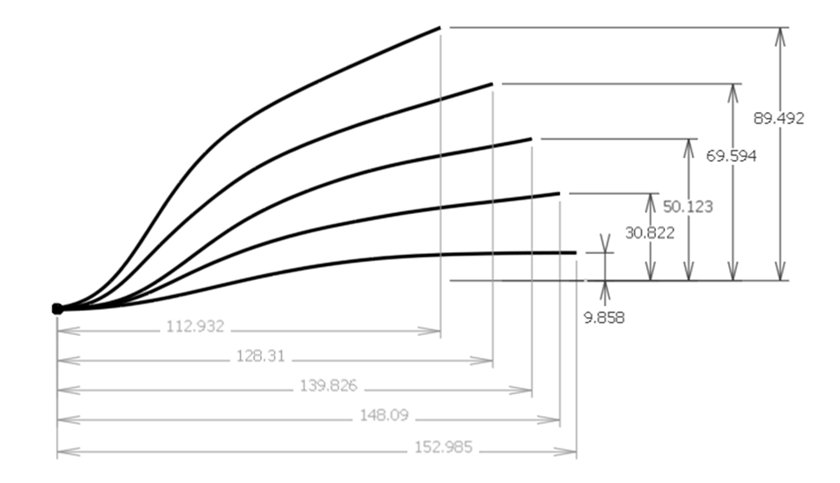

  • Figure 9.6
    Shoe-last shank curves (Length of all the curves are 155mm)

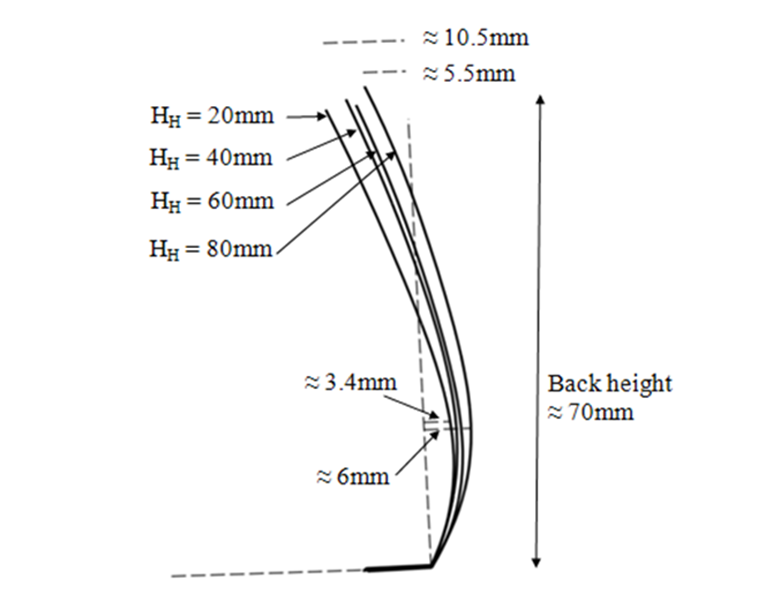

  • Figure 9.7
    Shoe-last back curves
  • Figure 9.8

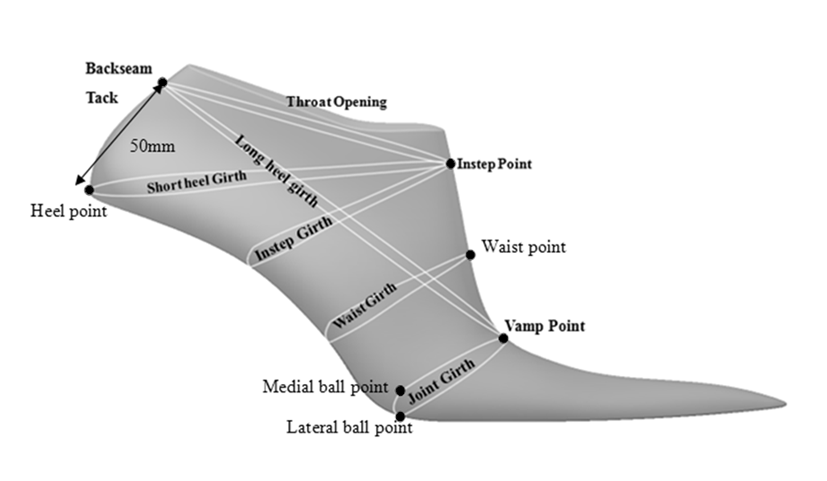

    Shoe last girths
  • Figure 9.9

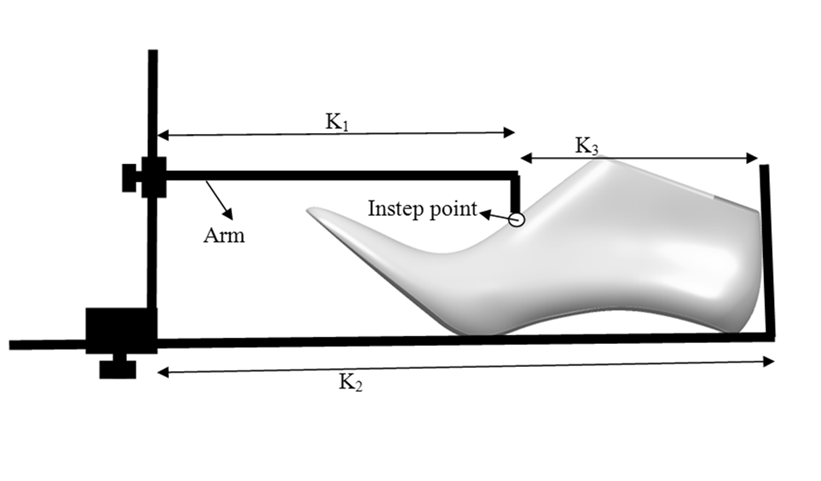

    Krippendorf Finder
  • Figure 9.10

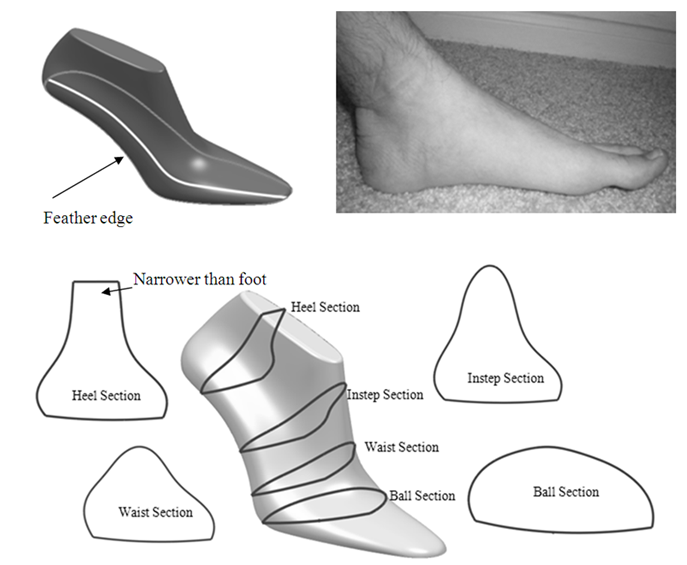

    The different sections of a shoe last

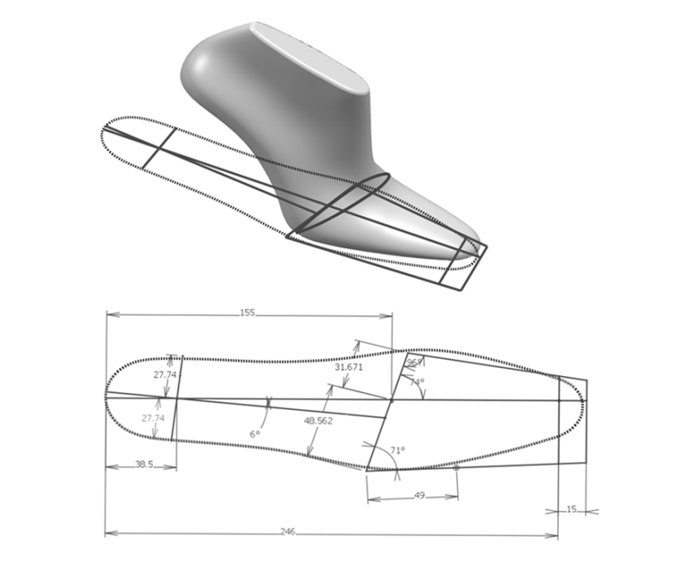

  • Figure 9.11
    Shoe last dimensions used for AKA64/WMS (girth = 211).Note: the size 6B in Adrian (1991) has ball girth = 204.8, but current shoe-last factories refer to size 6B which has a ball girth = 211. This is equivalent to size 6C in Adrian (1991)

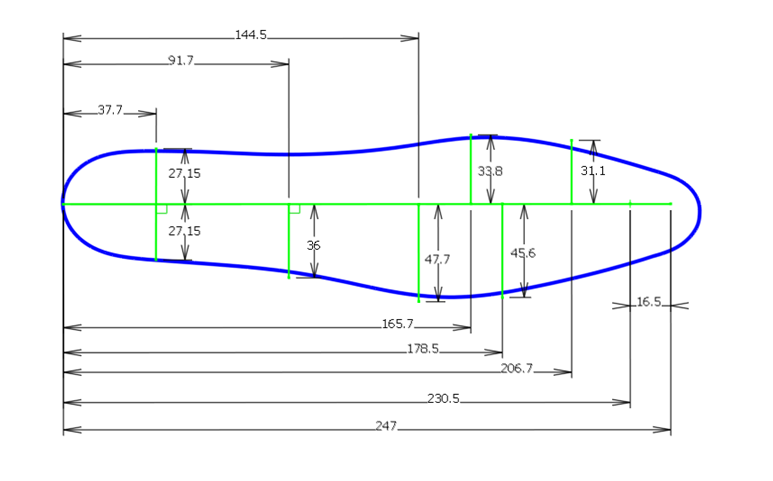

  • Figure 9.12
    Shoe last dimensions used for Chinese system (Chinese size 23.5 width 1.5; ball girth = 220mm)

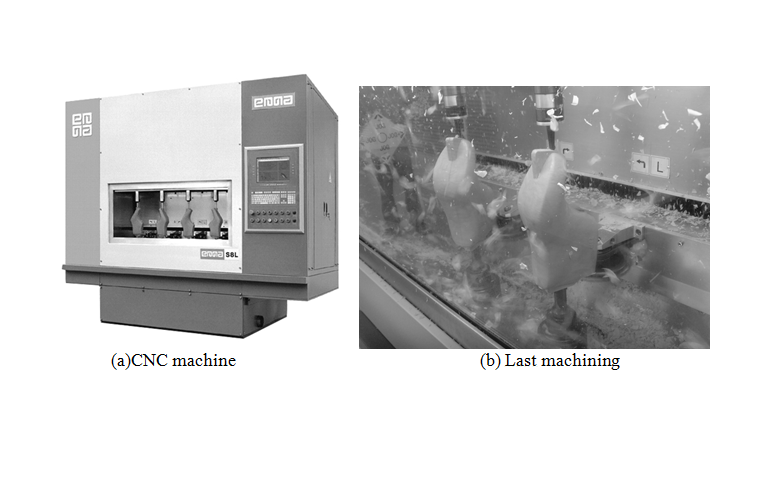

  • Figure 9.13
    Shoe-last CNC machine
